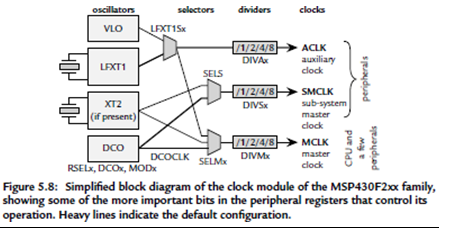

All microcontrollers contain a clock module to drive the CPU and peripherals. The conflicting requirements for clocks in high-performance, low-power microcontrollers were described in the section “Clock Generator”. Figure 5.8 shows a simplified diagram of the Basic Clock Module+ (BCM+) for the MSP430F2xx family. I concentrate on this because it is the most recent design; I mention the extra features of the MSP430x4xx later. The details vary between devices, even in the same family, and the second crystal oscillator XT2 is often omitted. Recall that the clock module provides three outputs:

Master clock, MCLK is used by the CPU and a few peripherals.

Sub-system master clock, SMCLK is distributed to peripherals.

Auxiliary clock, ACLK is also distributed to peripherals.

Most peripherals can choose either SMCLK, which is often the same as MCLK and in the megahertz range, or ACLK, which is typically much slower and usually 32 KHz. A few peripherals, such as analog-to-digital converters, can also use MCLK and some, such as

Timers, have their own clock inputs. The frequencies of all three clocks can be divided in the BCM+ as shown in Figure 5.8. For example, you might wish to run the CPU at 8MHz for rapid execution of code and therefore choose fMCLK = fDCOCLK = 8MHz. On the other hand, it may be more convenient if the peripherals run from a slower clock, in which case you might configure the divider for SMCLK with DIVSx to give fSMCLK = fDCOCLK/8 = 1MHz. Most peripherals have their own dividers for their clock sources, which gives yet more control. Up to four sources are available for the clock, depending on the family and variant:

Low- or high-frequency crystal oscillator, LFXT1: Available in all devices. It is usually used with a low-frequency watch crystal (32 KHz) but can also run with a high-frequency crystal (typically a few MHz) in most devices. An external clock signal can be used instead of a crystal if it is important to synchronize the MSP430 with other devices in the system.

High-frequency crystal oscillator, XT2: Similar to LFXT1 except that it is restricted to high frequencies. It is available in only a few devices and LFXT1 (or VLO) is used instead if XT2 is missing.

Internal very low-power, low-frequency oscillator, VLO: Available in only the more recent MSP430F2xx devices. It provides an alternative to LFXT1 when the accuracy of a crystal is not needed. Digitally controlled oscillator, DCO: Available in all devices and one of the highlights of the MSP430. It is basically a highly controllable RC oscillator that starts in less than 1 _s in newer devices. It is not quite true that any of the clocks can come from any of the sources, but the selection can seem bewildering. Fortunately the default configuration described in the section

“Clock Generator” on page 33 is a good starting point. As a reminder, this is as follows:

  1. ACLK comes from a low-frequency crystal oscillator at 32 KHz. There is no choice in almost all devices, the exceptions being those with a VLO.
  2. Both MCLK and SMCLK are supplied by the DCO with a frequency of around

1 MHz. This is stabilized by the FLL where present. You may wish to raise this frequency provided that VCC is high enough to support it.

Most applications do not need MCLK to be highly accurate, so there is rarely a need for a high-frequency crystal. A possible exception is those that use fast, asynchronous value.

We look at the characteristics of the sources in more detail. The Basic Clock Module+ is controlled by four registers, DCOCTL and BCSCTL1–3. In addition there are bits in the special function registers IFG1 and IE2 for reporting faults with the oscillators. Some of the clock signals can be brought out to pins if needed to supply external components or for testing (I use this later for Figure 5.10). This typically needs the pin to be configured for output using P1DIR and the signal switched to the clock from the usual digital port with P1SEL.
