• In any fiber optic communication system, in order to increase fiber length there is need to joint the length of fiber. The interconnection of fiber causes some loss of optical power. Different techniques are used to interconnect A permanent joint of cable is referred to as splice and a temporary joint can be done with the connector.
  • The fraction of energy coupled from one fiber to other proportional to common mode volume Mcommon. The fiber – to – fiber coupling efficiency is given as –

                                                                                                            … (4.1.1)

where,



ME is number of modes in fiber which launches power into next fiber.

  • The fiber – to – fiber coupling loss LF is given as –

LF = -10log ηF                                                                                …(4.1.2)

Mechanical Misalignment



The diameter of fiber is few micrometer hence the microscopic alignment is required. If the radiation cone of emitting fiber does not match the acceptance cone of receiving fiber, radiation loss takes place. The magnitude of radiation loss depends on the degree of misalignment. Different types of mechanical misalignments are shown in Fig. 4.1.1.









1.      Lateral misalignment

  • Lateral or axial misalignment occurs when the axes of two fibers are separated by distance ‘d’.

2.      Longitudinal misalignment

  • Longitudinal misalignment occurs when fibers have same axes but their end faces are separated by distance ‘S’.

3.      Angular misalignment

  • Angular misalignment occurs when fiber axes and fiber end faces are no longer parallel. There is an angle ‘θ’ between fiber end faces.
  • The axial or lateral misalignment is most common in practice causing considerable power The axial offset reduces the common core area of two fiber end faces as shown in Fig. 4.1.2.









  • The optical power coupled is proportional to common area of two fiber cores. The common area is given by expression –

                                               … (4.1.3)

where,



a is core radius of fiber.



d is separation of core axes.



  • The coupling efficiency for step index fiber is the ratio of common core area to the end- face area.

                                                     … (4.1.4)

  • For graded index fiber, the total received power for axial misalignment is given by –

                         … (4.1.5)

where,



P is the power in emitting fiber.



When, d << a, the above expression reduces to







… (4.1.6)



Fiber Related Losses



  • Losses in fiber cables also causes due to differences in geometrical and fiber

These includes,

  • Variation in core
  • Core area
  • Numerical
  • Refractive – index
  • Core-cladding



The user have less control over these variations since they are related to manufacturing process.

  • Coupling loss when emitter fiber radius aE and receiving fiber radius aR is not same, is given as –

… (4.1.7)





where,



aE is emitter fiber radius. aR is receiver fiber radius.

  • Coupling loss when numerical apertures of two fibers are not equal, to expressed as –

                             … (4.1.8)

  • Coupling loss when core refractive index of two fibers are not same, is expressed as

                                               … (4.1.9)

Fiber End – Face Preparation



  • Before connecting or splicing fiber ends must be properly faced to avoid losses and to improve the coupling The end faces should be polished until all the scratches are removed and they become smooth.
  • For cleaving fibers controlled fracture technique is used. The process involves following
  1. The fiber is scratched to create a stress concentration at the
  2. Fiber is then bent over a curved form with applied tension to produce stress

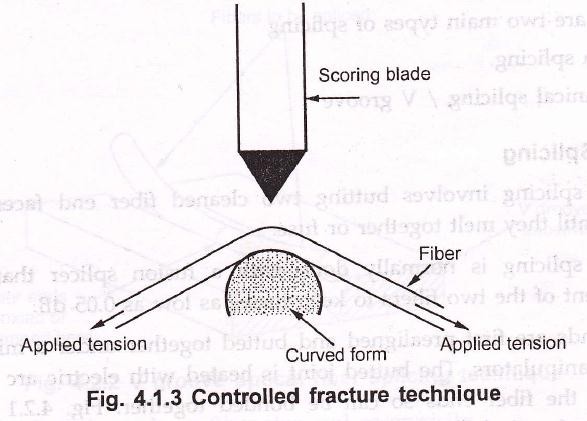

  3. Maximum stress occurs at scratch point and crack starts propagating through fiber. 4.1.4 shows the controlled fracture technique for preparing fiber end.



Precaution



  • If the stress distribution is not properly controlled, fiber can fork into several cracks, various types of defects can be introduced in the fiber, few of them are mentioned here.



Sr. No.

Defect Type

Description

1.

Lip

A sharp protrusion, that prevents the core from coming to close contact.

2.

Roll off

Rounding-off of the edge of fiber.

3.

Chip

A localized fracture.

4.

Hackle

Irregularities across fiber end.

5.

Mist

Similar to hackle.

6.

Step

An abrupt change in end face surface.

7.

Shattering

Result of uncontrolled fracture.
