Discuss about Ideal High Pass Filter and Butterworth High Pass filter.



High pass Filtering:

An image can be blurred by attenuating the high-frequency components of its Fourier transform. Because edges and other abrupt changes in gray levels are associated with high-frequency components, image sharpening can be achieved in the frequency domain by a high pass filtering process, which attenuates the low-frequency components without disturbing high-frequency information in the Fourier transform.

Ideal filter:

2-D ideal high pass filter (IHPF) is one whose transfer function satisfies the relation

where Do is the cutoff distance measured from the origin of the frequency plane. Figure 5.1 shows a perspective plot and cross section of the IHPF function. This filter is the opposite of the ideal lowpass filter, because it completely attenuates all frequencies inside a circle of radius Do while passing, without attenuation, all frequencies outside the circle. As in the case of the ideal lowpass filler, the IHPF is not physically realizable.

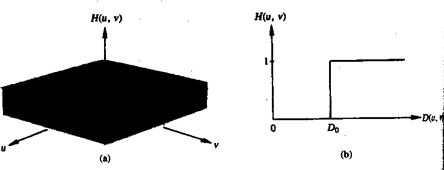

Fig.5.1 Perspective plot and radial cross section of ideal high pass filter



Butterworth filter:

The transfer function of the Butterworth high pass filter (BHPF) of order n and with cutoff frequency locus at a distance Do from the origin is defined by the relation

Figure 5.2 shows a perspective plot and cross section of the BHPF function. Note that when D (u, v) = Do, H (u, v) is down to ½ of its maximum value. As in the case of the Butterworth lowpass filter, common practice is to select the cutoff frequency locus at points for which H (u, v) is down to 1/√2 of its maximum value.

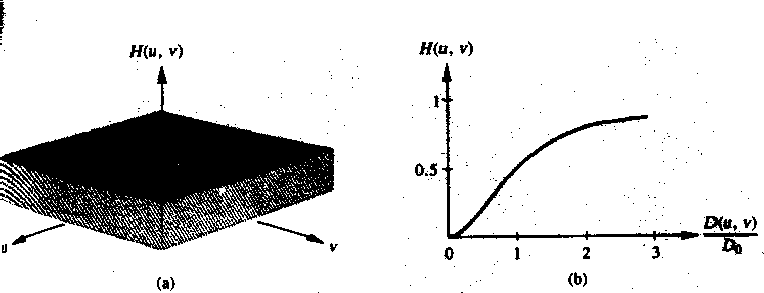

Fig.5.2 Perspective plot and radial cross section for Butterworth High Pass Filter with n = 1
